Ex E stainless steel enclosures

AISI316L STAINLESS STEEL ENCLOSURES

CSX - Ex e IIC SERIES

The enclosures of the CSX series are used in Ex-e increased safety environments, with terminals or distribution bars. They can be made with removable flanges on each of the four sides, and hinges are available upon request. Standard features include adjustable mounting feet.

Cable glands and terminals must be certified for increased safety. Materials: body and cover, nuts and screws made of AISI316L stainless steel, silicone gasket fixed on the cover and flanges.

II 2G Ex e IIC T5/T6 Gb, II 2D Ex tb IIIC T100°/T85°C Db, II 2G Ex e ia IIC T6 Gb, II 2D Ex tb e ia IIIC T85°C Db IP66

AISI316L STAINLESS STEEL ENCLOSURES WITH OPERATORS

CSX - Ex ed SERIES

The enclosures of this series are used in Ex-e increased safety environments. They are used as signalling or control panels with operators on the cover (buttons, indicators, selectors). They can be made with or without removable flanges on each of the four sides; hinges for fastening are available upon request. Standard features include adjustable mounting feet. Materials: body and cover, nuts and screws made of AISI316L stainless steel, silicone gasket fixed on the cover and flanges.

II 2G Ex de IIC T6 Gb, II 2D Ex tb IIIC T85°C Db, II 2G Ex de ia IIC T6 Gb, II 2D Ex tb e ia IIIC T85°C Db IP66

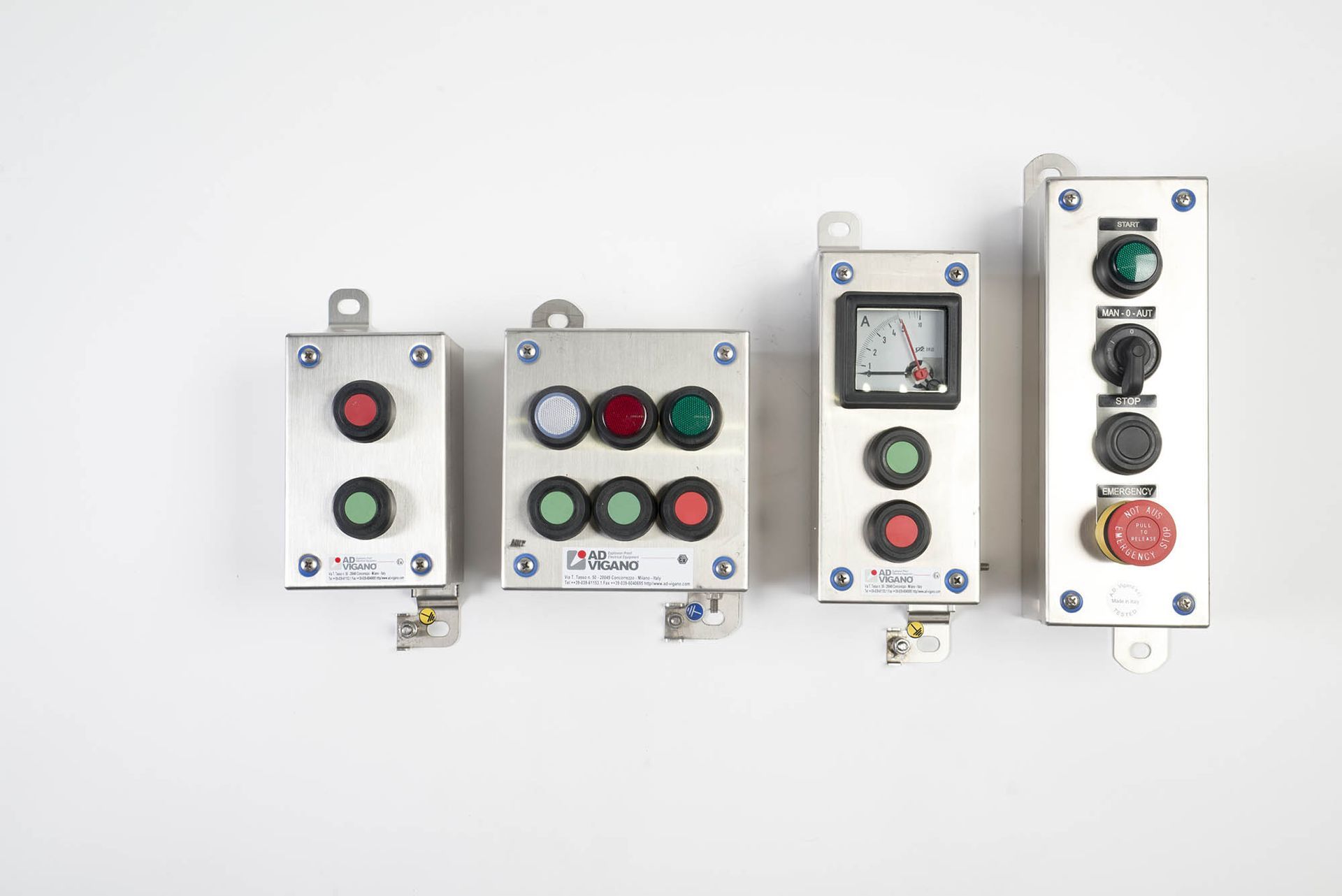

AISI316L STAINLESS STEEL ENCLOSURES WITH OPERATORS

SD - Ex ed SERIES

The SD series enclosures are used in environments classified for increased safety Ex-e. They can be equipped with Ex-de control operators such as buttons, indicators, selectors, ammeters, and potentiometers. Materials: body and cover, nuts and screws made of AISI316L stainless steel, silicone gasket fixed on the cover.

II 2G Ex de IIC T6 Gb, II 2D Ex tb IIIC T85°C Db, II 2G Ex de ia IIC T6 Gb, II 2D Ex tb e ia IIIC T85°C Db IP66

ACCESSORIES AND OPERATORS FOR Ex dE ENCLOSURES

Commands, controls, and valves are certified components designed for installation in Ex e enclosures.

0201 series buttons and selectors complete with NO or NC contacts.

0202 series indicator lights complete with LEDs and coloured lenses.

0205 series ammeters.

ECD1 series drainage/breathing valves.

Accessories available on request: hinges, document pockets (only for certain sizes), door stop pin, earth terminal, ……
